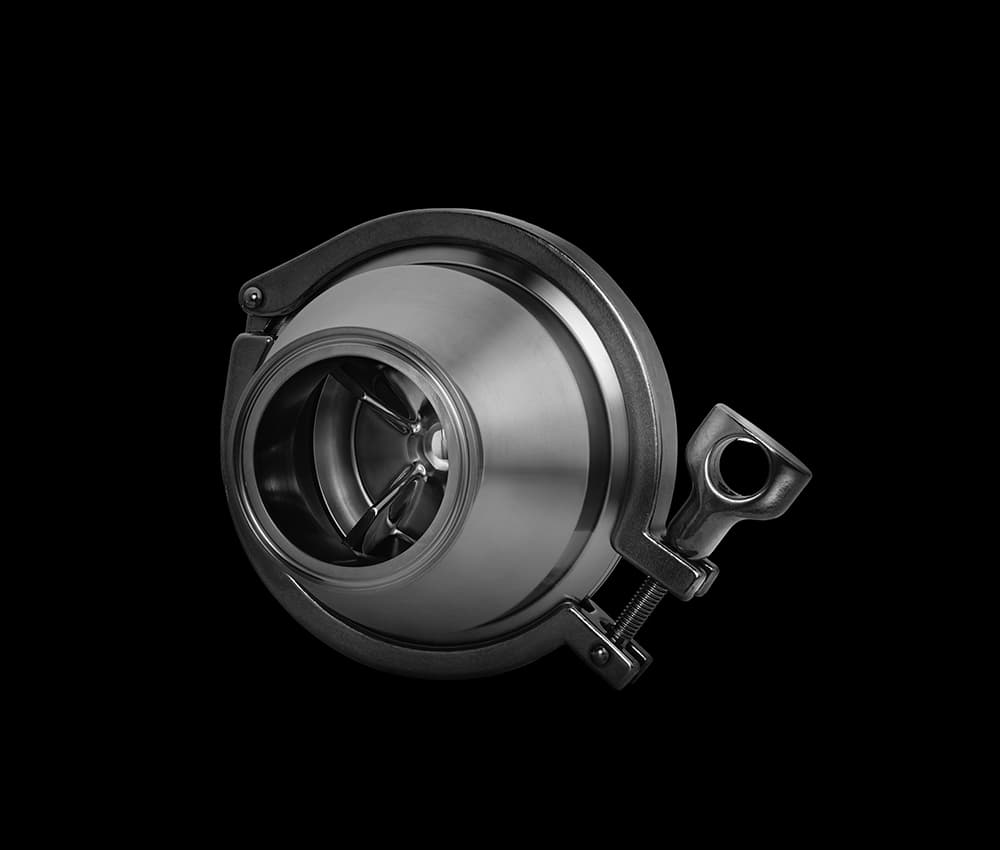

YEV Valve

The simplest check valve for food & beverage systems.

The most essential non-return valve in the Ygros range: patented, hygienic, and reliable. Despite its simplicity, YGROS YEV maintains all the key features required for hygienic applications, making it a smart and efficient choice for modern process systems.

Applications:

Beverage|

Food

Resistant up to 150°C

No more springs that can break or misfire

No flow obstruction components

No stagnation points

Maximum hygiene

Only the shutter comes into contact with the product. No stagnation points, no spring or other intermediate components that could contaminate it.

Safe closing

Ensured by the patented magnetic principle.

Any installation position

It can be installed in horizontal, vertical up and down positions.

Energy saving

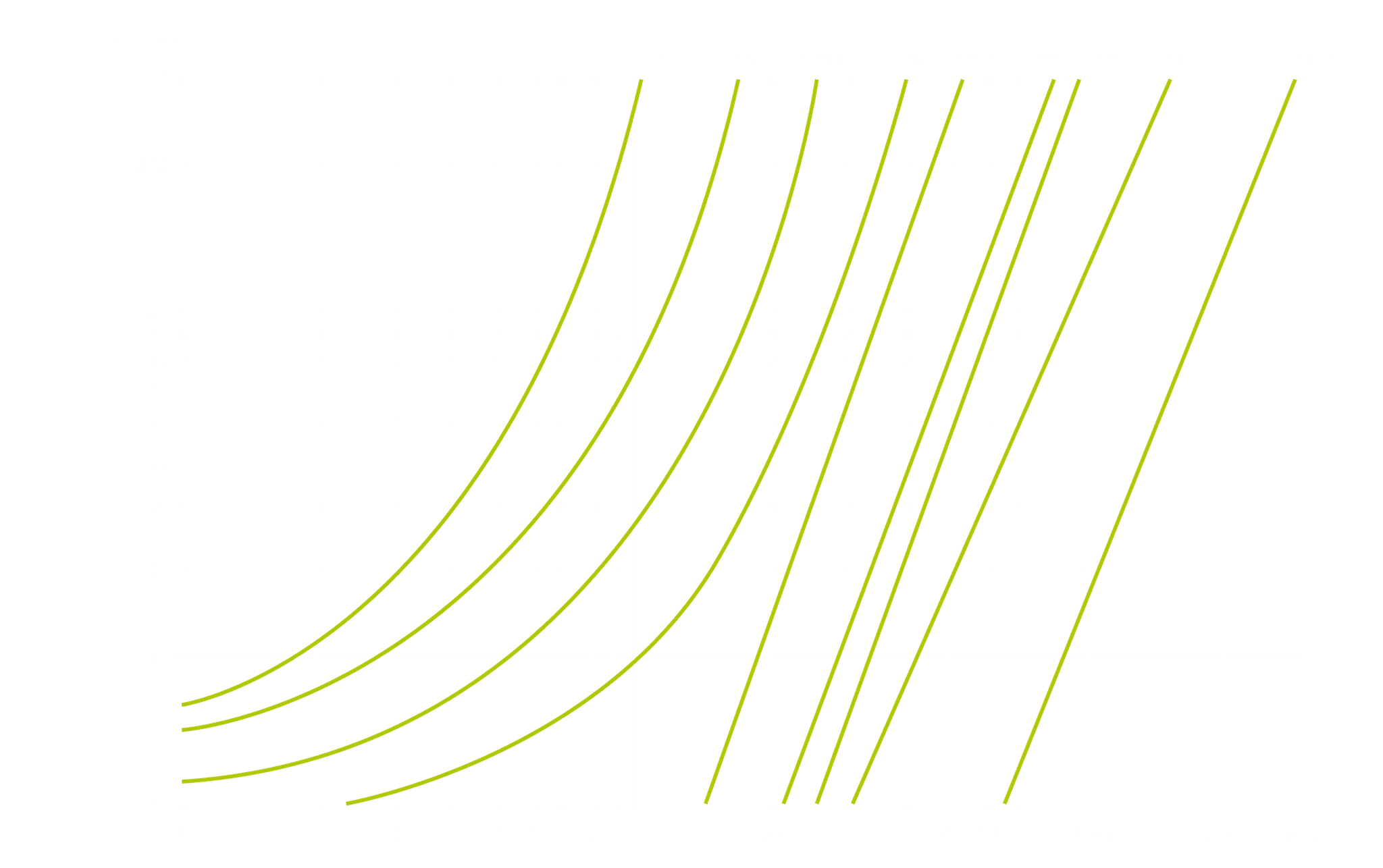

Its innovative working principle and design allow for a smooth flow, minimising pressure drop.

Laminar flow

No turbulence.

No periodic maintenance required

Long valve life

Thanks to high chemical resistance of the materials.

Full traceability for all metal components and seals.

Parameter	Value
Product contact materials	Body and flanges: Stainless Steel 1.4404 (AISI 316L) Shutter: 1.4462 (Duplex) – 1.4410 (F53)
Non product contact materials	Magnet: Neodymium
Seals material options	EPDM, VMQ (Silicone), FKM (Viton)
Surface finishes	Internal: Ra µm ≤ 0.8 External: Ra µm ≤ 3.2
Dimensions	DN 15 - DN 100 \| 3/4” - 4”
End connection options	WELDING: DIN 11850 / ASME BPE TRI-CLAMP: ASME BPE
Temperature range	-20°C/+150°C
Operating pressure	PN16 (standard)
Media	Food & Beverage, Liquids
Certificates (on request)	MATERIAL: EN10204:2005 – 3.1 O-RING: FDA - Declaration of conformity Surface roughness PED EC 1935/2004 3A

Once opened, the valve requires only about 10 mbar to stay in operation.

Installation / Flow Direction	Opening Pressure
HORIZONTAL	30/50 mbar
VERTICAL (Downward Flow)	27/45 mbar
VERTICAL (Upward Flow)	33/55 mbar

Test with water at 20°C (68°F) on horizontal pipes.
