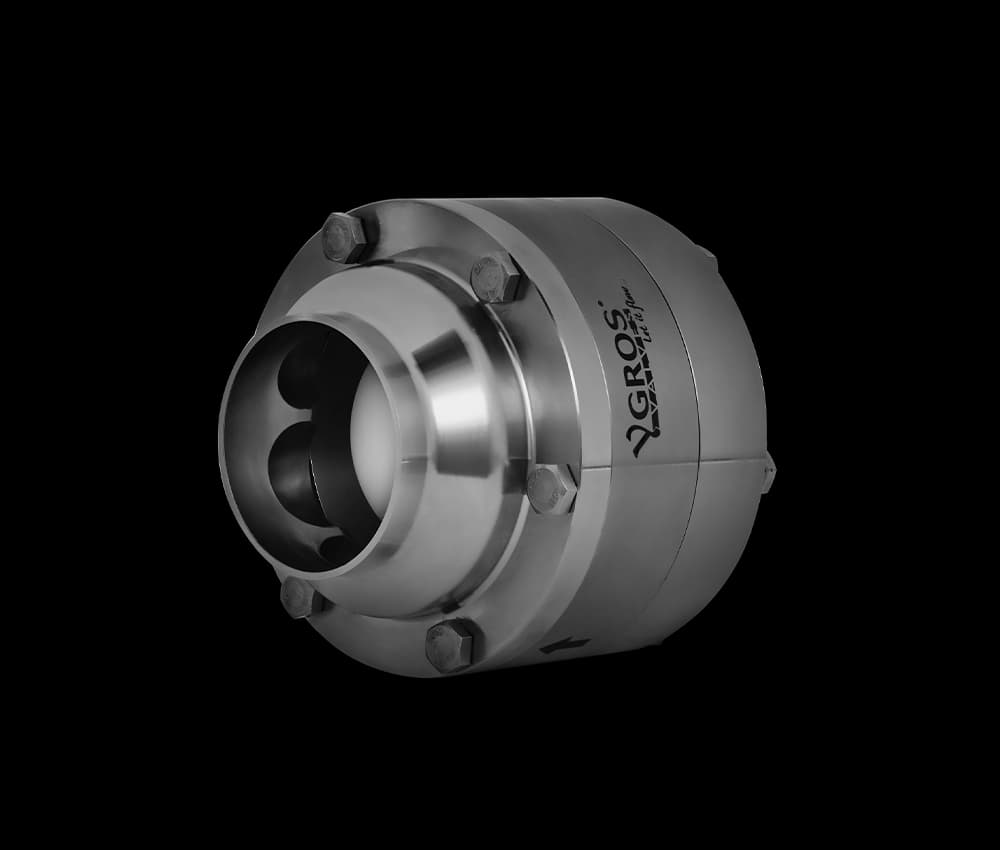

AGGROBALL Valve

Specifically designed for handling aggressive substances.

Engineered specifically for the safe handling of aggressive acids and fluids with high viscosity, YGROS AGGROBALL offers exceptional durability, making it ideal for the most demanding chemical industry applications.

Applications:

Chemical|

Food

Resistant up to 150°C

No more springs that can break or misfire

No flow obstruction components

No stagnation points

Maximum hygiene

Only the shutter comes into contact with the product. There are no springs, discs or other components which could contaminate it, this means no contamination and no stagnation point. High quality materials such as 1.4435 (AISI 316LM with ferrite content < 1%)

Safe closing

Ensured by patented magnetic principle.

Any installation position

It can be installed in horizontal, vertical bottom to top positions.

Energy saving

Its innovative working principle and design allow for a smooth flow, minimising pressure drop.

Laminar flow

No turbulence.

No periodic maintenance required

High chemical resistance and long valve life

Derived from the use of highly resistant materials such as 1.4435 (body and flanges) and PVDF (shutter).

Full traceability for all metal components and seals.

Parameter	Value
Product contact materials	Body and flange: Stainless Steel 1.4435 (AISI 316LM), max <1% ferrite Ball: PVDF
Non product contact materials	Magnet: Neodymium
Seals material options	EPDM, NBR, HNBR, VMQ (Silicone), FKM (Viton), FEP, PTFE
Surface finishes	Internal: Ra µm ≤ 0.8 External: Ra µm ≤ 3.2
Dimensions	DN 15 - DN 100 \| 3/4” - 4”
End connection options	WELDING: DIN 11850 (DIN 11866 Reihe A); ASME BPE (DIN 11866 Reihe C) TRI-CLAMP: ASME BPE
Temperature range	-40°C/+150°C
Operating pressure	PN16 (standard)
Media	Aggressive acids and fluids with high viscosity
Certificates (on request)	MATERIALS: EN10204:2005 – 3.1 O-RING: FDA - Declaration of conformity Surface roughness ATEX PED EC 1935/2004

Once opened, the valve requires only about 10 mbar to stay in operation.

Installation / Flow Direction	Opening Pressure
HORIZONTAL	20/40 mbar
VERTICAL (Top to Bottom Flow)	30/50 mbar
