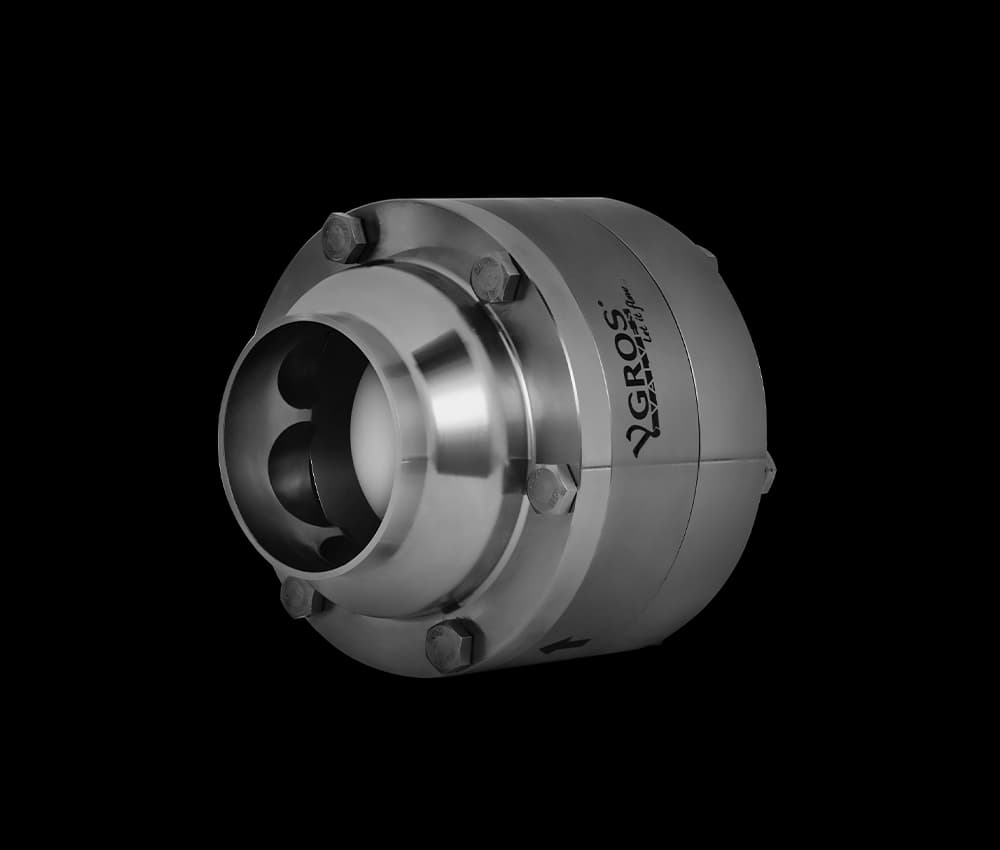

PHARMABALL Valve

The evolution of ultimate purity.

Engineered with a unique hygienic design, exceptional surface finishes, and high-quality materials, this valve is suitable for all installation orientations and performs reliably with high viscosity products.

Applications:

Cosmetic|

Pharmaceutical

Resistant up to 150°C

No more springs that can break or misfire

No flow obstruction components

No stagnation points

Maximum hygiene

Only the shutter comes into contact with the product. No stagnation points, no springs or other intermediate components which could contaminate it. High-quality surface finishes and materials such as 1.4435 (AISI 316 LM ferrite <1%).

Safe closing

Ensured by patented magnetic principle.

Any installation position

It can be installed in horizontal, vertical bottom to top positions.

Energy saving

Its innovative working principle and design allow for a smooth flow, minimising pressure drop.

Laminar flow

No turbulence.

No periodic maintenance required

High chemical resistance and long valve life

Thanks to the use of particularly resistant materials such as 1.4435 (body and flange) and PVDF (shutter).

Full traceability for all metal components and seals.

Parameter	Value
Product contact materials	Body and flange: Stainless Steel 1.4435 (AISI 316LM), max <1% ferrite Ball: PVDF
Non product contact materials	Magnet: Neodymium
Seals material options	EPDM, NBR, HNBR, VMQ (Silicone), FKM (Viton), FEP, PTFE
Surface finishes	Internal: Ra µm ≤ 0.4 (electropolished) Passivation on request (optional) External: Ra µm ≤ 1.2 (electropolished) Passivation on request (optional)
Dimensions	DN 15 - DN 100 \| 3/4” - 4”
End connection options	WELDING: DIN 11850 (DIN 11866 Series A); ASME BPE (DIN 11866 Series C) TRI-CLAMP: ASME-BPE
Temperature range	-40°C/+150°C
Operating pressure	PN16 (standard)
Media	Fluids with high viscosity
Certificates (on request)	MATERIAL: EN10204:2005 – 3.1 O-RING: FDA - Declaration of conformity and PVDF ball (USP class VI) Surface roughness ATEX PED EC 1935/2004

Once opened, the valve requires only about 10 mbar to stay in operation.

Installation / Flow Direction	Opening Pressure
HORIZONTAL	20/40 mbar
VERTICAL (Top to Bottom Flow)	30/50 mbar

Discover Our Other Solutions

Explore our complete portfolio of innovative valves, each engineered to deliver exceptional performance across pharmaceutical, food & beverage, and industrial applications.

EDF Valve

Maximum hygiene without the need for maintenance. Guaranteed tightness in all installation positions, including vertical with downward flow. The patented YGROS technology sets new standards in process engineering, thanks to its magnetic principle that replaces the function of the traditional spring. Suitable for both fluids and gases.

Applications:

Beverage|

Chemical|

Cosmetic|

Food|

Pharmaceutical

EDF 3-A Valve

Developed specifically for the US market and certified by the 3-A Sanitary Standards Institute, it guarantees maximum hygiene without the need for maintenance. It guarantees maximum hygiene with no need of periodic maintenance, reliable sealing in all installation positions, including vertical flow downward. Suitable for use with both liquids and steam.

Applications:

Beverage|

Chemical|

Cosmetic|

Food|

Pharmaceutical

YEV Valve

The most essential non-return valve in the Ygros range: patented, hygienic, and reliable. Despite its simplicity, YGROS YEV maintains all the key features required for hygienic applications, making it a smart and efficient choice for modern process systems.

Applications:

Beverage|

Food

YSV Valve

The extractable check valve designed for easy maintenance. With its specially engineered design, YGROS YSV is the ideal solution for systems that require frequent inspections and quick servicing.

Applications:

Beverage|

Cosmetic|

Dairy|

Food

YSV 3-A Valve

Developed specifically for the U.S. market and certified by the 3-A Sanitary Standards Institute, the YGROS YSV 3-A is an extractable check valve engineered to minimise maintenance time. Welded flanges remain on the pipeline, while the valve body can be removed, inspected and reinstalled without dismantling the system, making it ideal for applications requiring frequent inspections and fast servicing.

Applications:

Beverage|

Cosmetic|

Dairy|

Food

AGGROBALL Valve

Engineered specifically for the safe handling of aggressive acids and fluids with high viscosity, YGROS AGGROBALL offers exceptional durability, making it ideal for the most demanding chemical industry applications.

Applications:

Chemical|

Food

WAFER Valve

Smart and versatile solution engineered for vacuum, gas, and water treatment systems. Suitable for installation in horizontal, vertical upward, and vertical downward positions. For fluids, gases and steam.

Applications:

Gas|

Water Treatment

Resources

Download Our Complete Catalog

Get the complete valve catalog with detailed specifications, technical drawings, and application guidelines for all our products.
