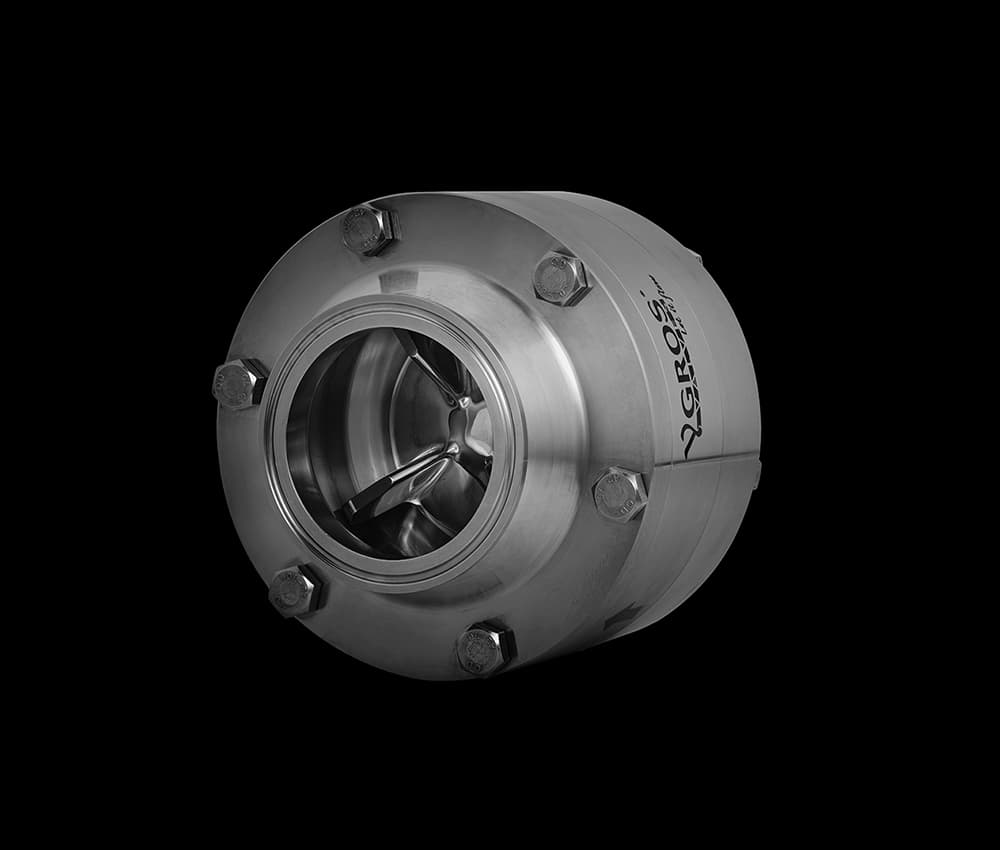

EDF Valve

The innovative springless check valve for hygienic applications.

Maximum hygiene without the need for maintenance. Guaranteed tightness in all installation positions, including vertical with downward flow. The patented YGROS technology sets new standards in process engineering, thanks to its magnetic principle that replaces the function of the traditional spring. Suitable for both fluids and gases.

Applications:

Beverage|

Chemical|

Cosmetic|

Food|

Pharmaceutical

Resistant up to 150 or 220°C

No more springs that can break or misfire

No flow obstruction components

No stagnation points

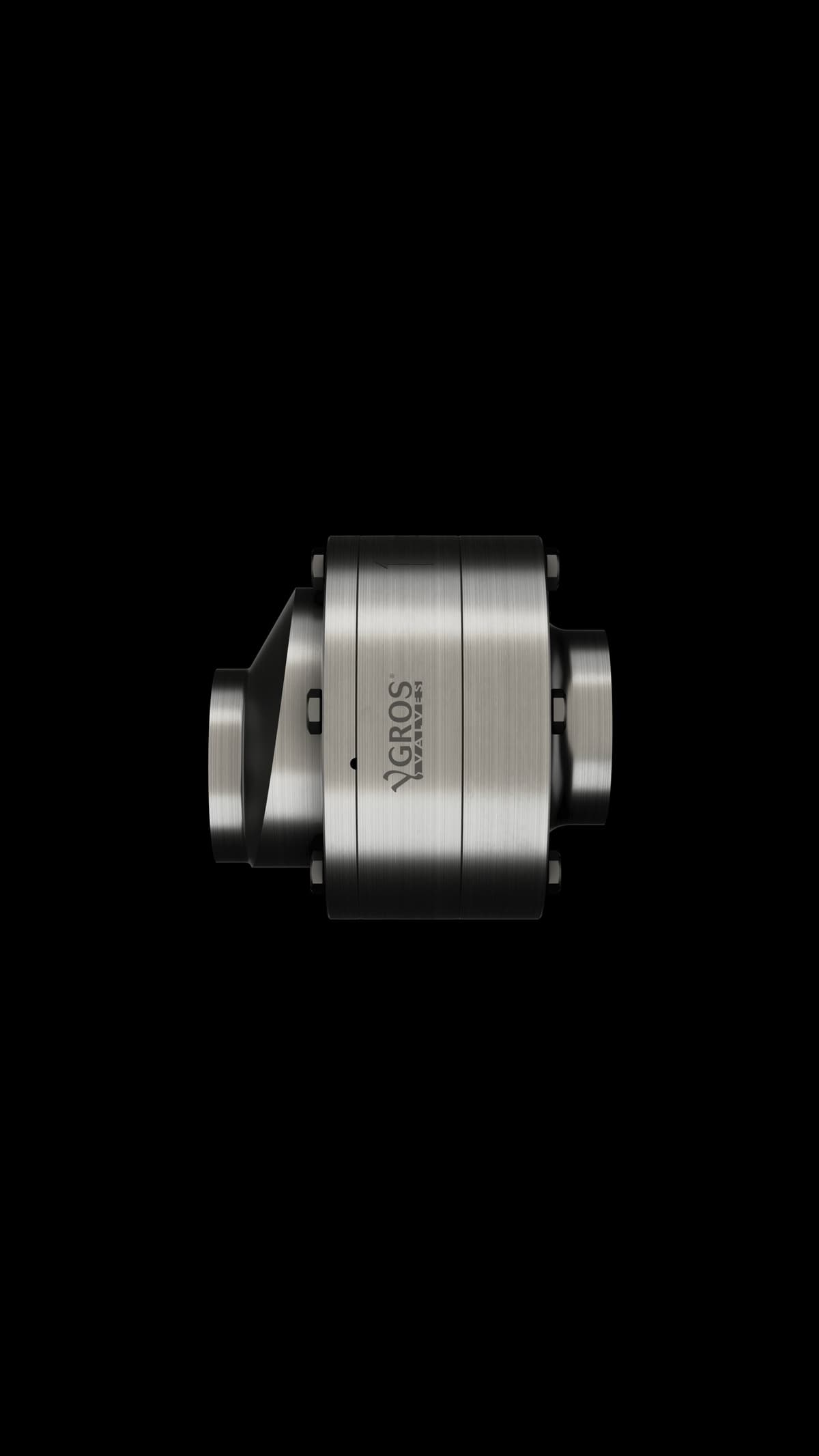

EDF Eccentric Valve

Eccentric self-draining version available. Suitable for horizontal installations.

Maximum Hygiene

Only the shutter comes into contact with the product. There are no springs, discs or other components which could contaminate it, this means no contamination and no stagnation point.

Safe closing

Ensured by patented magnetic principle.

Any installation position

It can be installed in horizontal, vertical up and down positions.

Energy saving

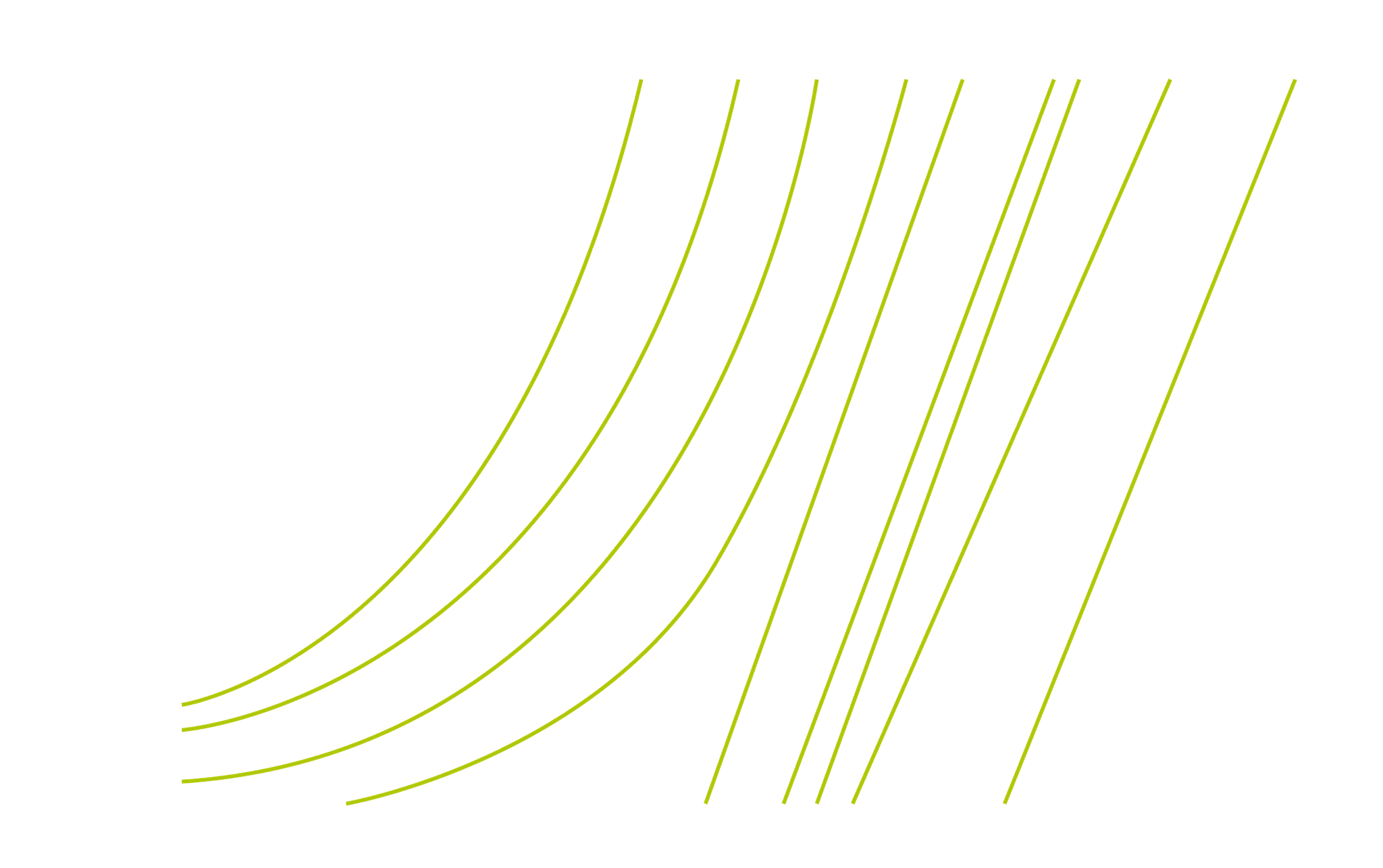

Its innovative working principle and design allow for a smooth flow, minimising pressure drop.

Laminar flow

No turbulence.

No periodic maintenance required

Long valve life

Thanks to high chemical resistance of the materials.

Full traceability for all metal components and seals.

Parameter	Value
Product contact materials	Body and flanges: Stainless Steel 1.4404 (AISI 316L) Shutter: 1.4462 (Duplex) – 1.4410 (F53)
Non product contact materials	Magnet: Neodymium
Seals material options	EPDM, NBR, HNBR, VMQ (Silicone), FKM (Viton) FEP, PTFE
Surface finishes	Internal: Ra µm ≤ 0.8 (standard) up to Ra µm ≤ 0.4 electropolished and passivated (optional) External: Ra µm ≤ 3.2 (standard) up to Ra µm ≤ 0.4 electropolished and passivated (optional)
Dimensions	DN6 - DN 200 \| 1/2” - 8”
End connection options	WELDING: DIN 11850 / DIN 11851 / ASME BPE / ISO 1127 / SMS TRI-CLAMP: ASME-BPE / ISO 1127-2852 / SMS-2852 / DIN 32676 THREADED: DIN 405 Female / BSP 60° Male / BSP 60° Female
Temperature range	-20°C/+150°C (Standard). Up to +220°C (optional)
Operating pressure	PN16 (standard). Further operating pressures on request.
Media	Liquids, gas, steam.
Certificates (on request)	MATERIAL: EN10204:2005 -3.1 O-RING: FDA - Declaration of conformity Surface roughness ATEX PED EC 1935/2004

Once opened, the valve requires only about 10 mbar to stay in operation.

Installation / Flow Direction	Opening Pressure
HORIZONTAL	30/50 mbar
VERTICAL (Downward Flow)	27/45 mbar
VERTICAL (Upward Flow)	33/55 mbar

Test with water at 20°C (68°F) on horizontal pipes.
